Hot air welder, Quick Mini Elektronic, Hot air welding gun. for external air supply 1500W, 230V
  • Hot air welder, Quick Mini Elektronic, Hot air welding gun. for external air supply 1500W, 230V
  • Hot air welder, Quick Mini Elektronic, Hot air welding gun. for external air supply 1500W, 230V
  • Hot air welder, Quick Mini Elektronic, Hot air welding gun. for external air supply 1500W, 230V

Hot air welder, Quick Mini Elektronic, Hot air welding gun. for external air supply 1500W, 230V

2.470,00 DKK

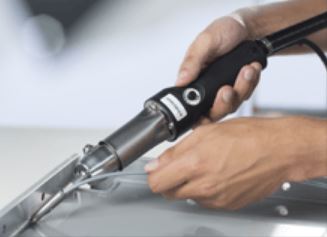

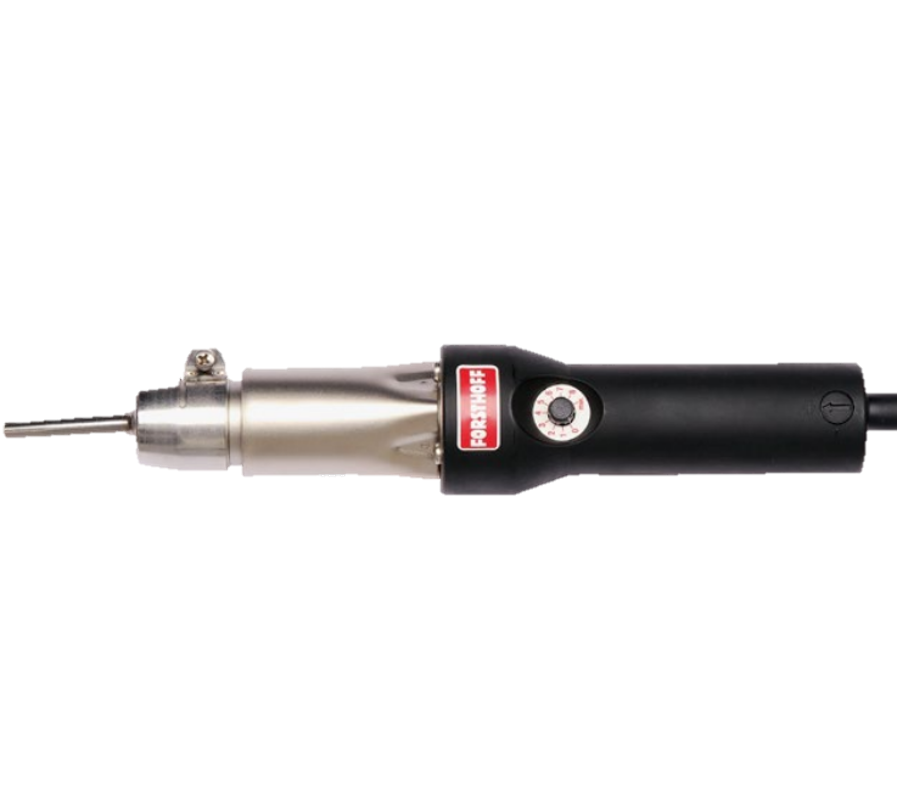

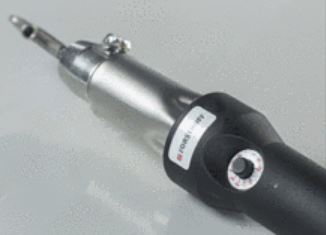

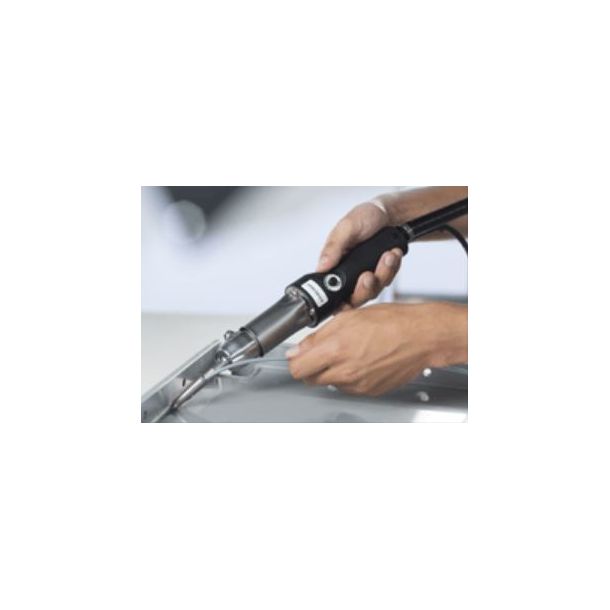

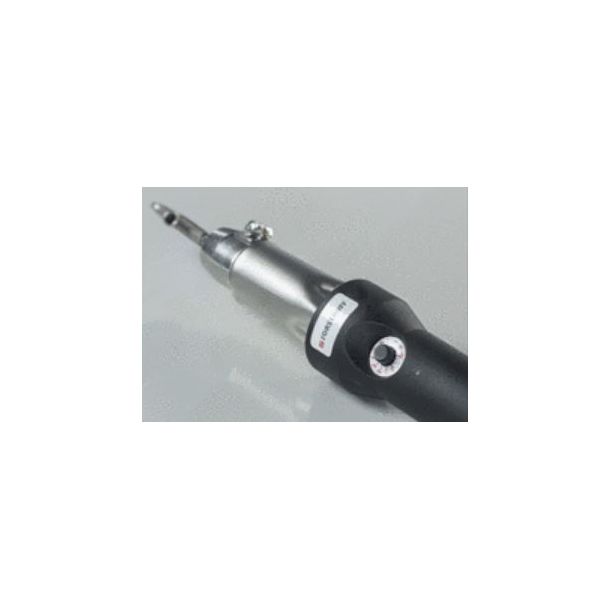

Small and light-weight hot air welding gun.

Due to its light weight and handiness, the insulated welding gun MINI-electronic is perfectly suited for plastics fitters and tank manufacturers.

The heat output of 1500 W 230 V is infinitely variable between 20 and 700 °C and is kept constant by an electronic control system. In addition, it is possible to adjust the required air flow by means of an additional rotary knob.4

The device requires an external air supply, such as a side channel blower, fan or compressor. We additionally offer a mobile hand-held fan that is easy to carry and supplies the required air on construction sites and in the field.

The outlet pipe measures 31.5 mm. and fits with a large number of air nozzles.

If necessary, it is possible to equip the welding gun with a threaded slip-on nozzle M 10. This slip-on nozzle permits the use of screw-on quick-weld nozzles, which are preferably used in plastics and tank construction due to their high degree of stability.

The welding gun MINI-electronic can be equipped with numerous accessories for welding plastic plates, pipes, components and tanks.

At construction sites and for use in the field, the additionally available hand-held fan supplies the required air flow.

Model MINI-ELECTRONIC
Voltage    1500 W 230 V 50/60 Hz or 1300 W 120 V 50/60 Hz
Temperature 20-700 °C, infinitely variable
Air requirement 80 - 250 litres/min
Weight 0.395 kg + 3 m connection cable
Dimensions Length 270 mm, handle diameter 54 mm
Electrical safety II/  Double insulated
Model/Product no.: 541.008
Stock status: Ready for shipment!




pc
The very light and double-insulated gun delivers hot air, stepless setting between 20 ° C and 700 ° C, via the electronics,
regardless of which nozzle is fitted, without changing the heating element.
The selected welding temperature is kept constant.
The air flow is infinitely adjustable with a built-in control valve.
Technical data:
230 / 240V ~ 50/60 Hz
Air consumption: 80 - 250 l / min
Heating element 1500 Watt,
Included: Ø8 adaptor nozzle and 3 meter air hoze
Title Type Size Download
Quick-Mini-Datasheet.pdf PDF 507.49KB Download
