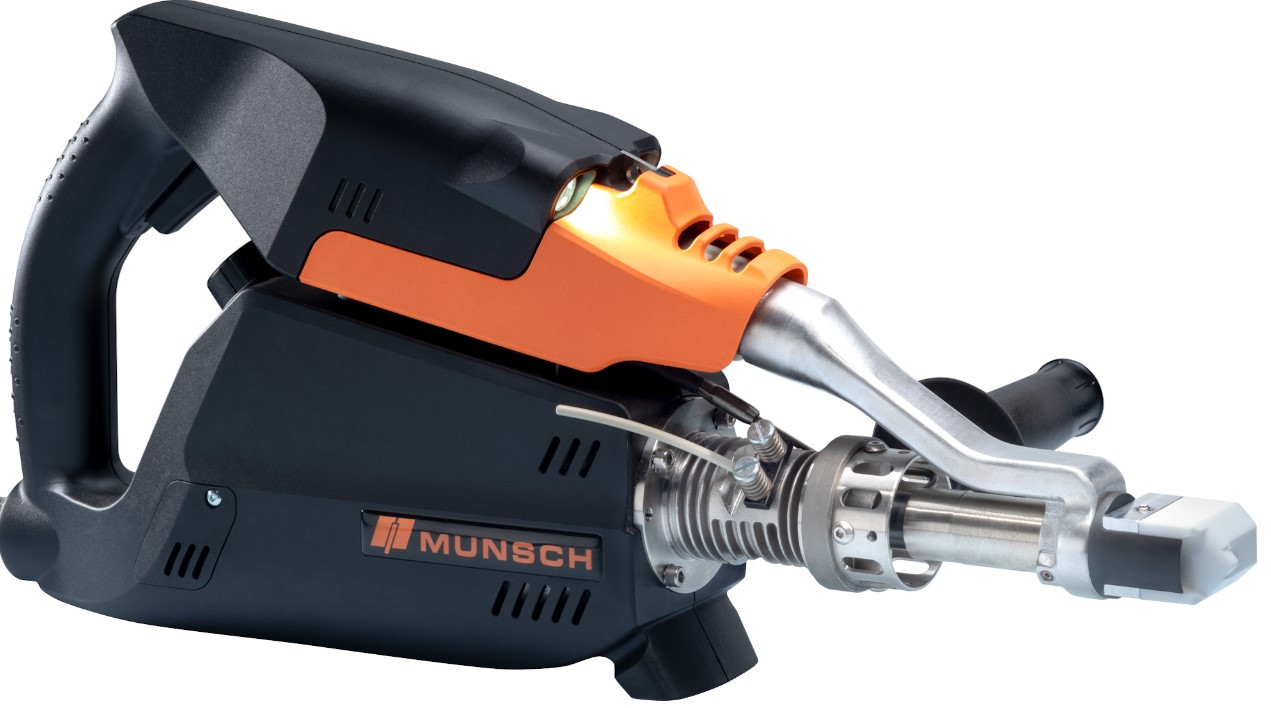

Extruder, Munsch, MAX 18, (Digital) with 360° turnable nozzle and autoair 230V-50hz

+45 9835 1930 --or-- SEND MAIL

Model/Product no.: 531.180

Stock status: Ready for shipment!

Description
Downloads

Extruder, Munsch, MAX 18, (Digital) with 360° turnable nozzle and autoair 230V-50hz SN:_____

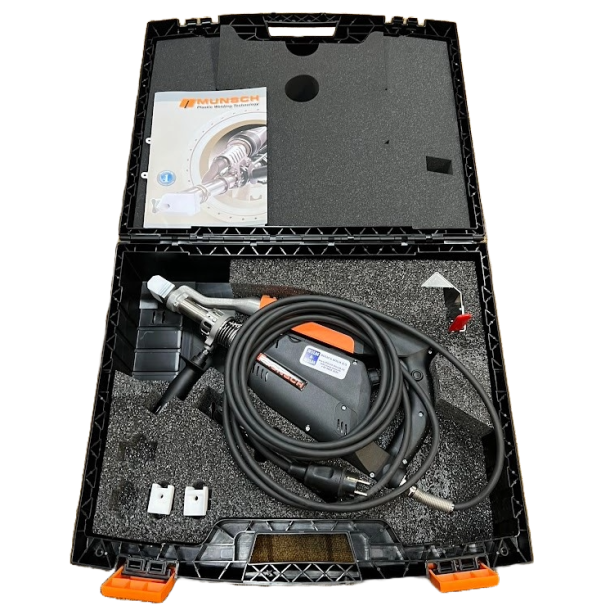

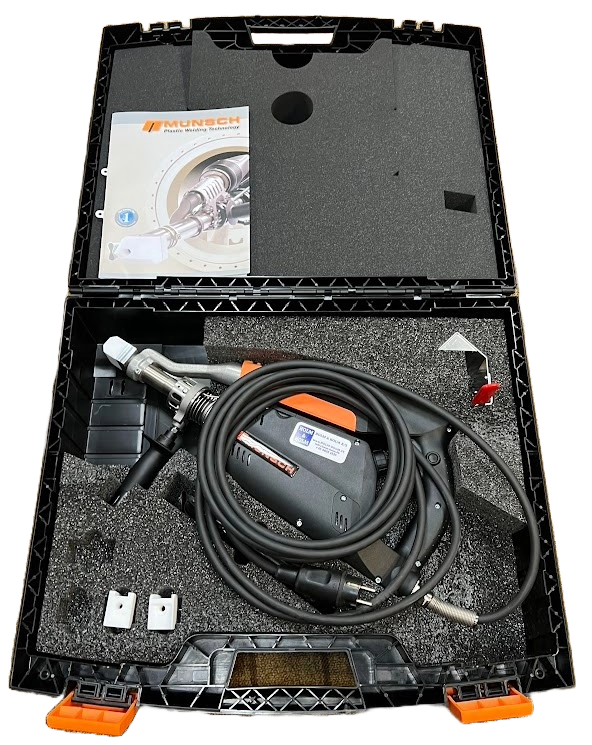

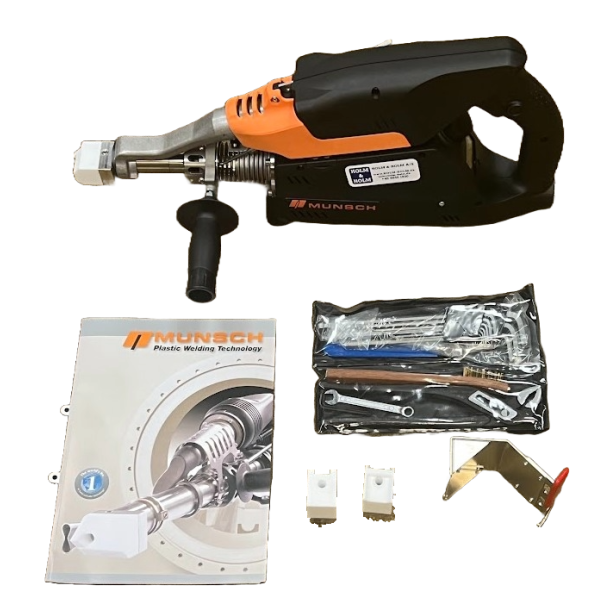

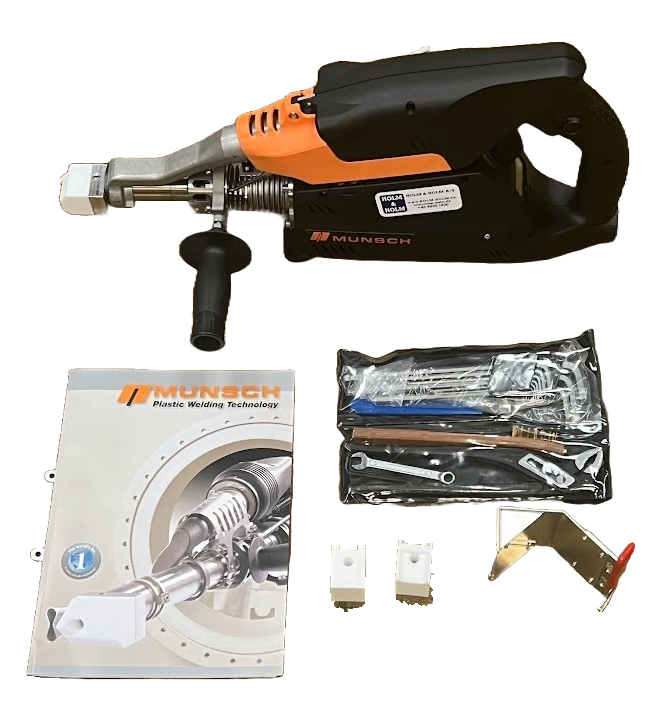

Scope of delivery:
1 hand extruder
1 handle
3 welding shoes
1 hot air hood
1 tool kit

Portable Extruder Welding Gun; MAX-18, 230V
Welding rate: 1,3 kg/h - Ø 3 mm Rod; 2,2 kg/h - Ø 4
mm Rod
Rod welding material: PP / PE / PVDF - preset
Welding rod: Rod Ø 3 / 4 mm
Range of application: Wall thickness form 4 to 15
mm
Weight: 5,3 kg
Drive: 1000 W, 230 V - speed controlled
Extruder heating: 400 W, 230 V
Air heater: 2300 W, 230 V - brushless

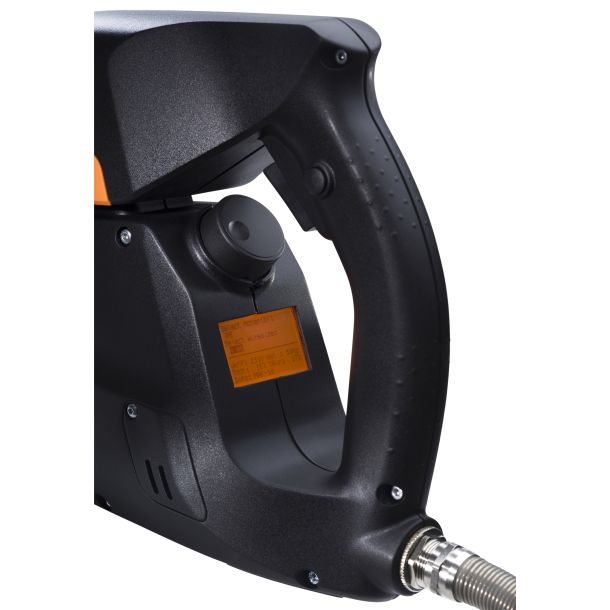

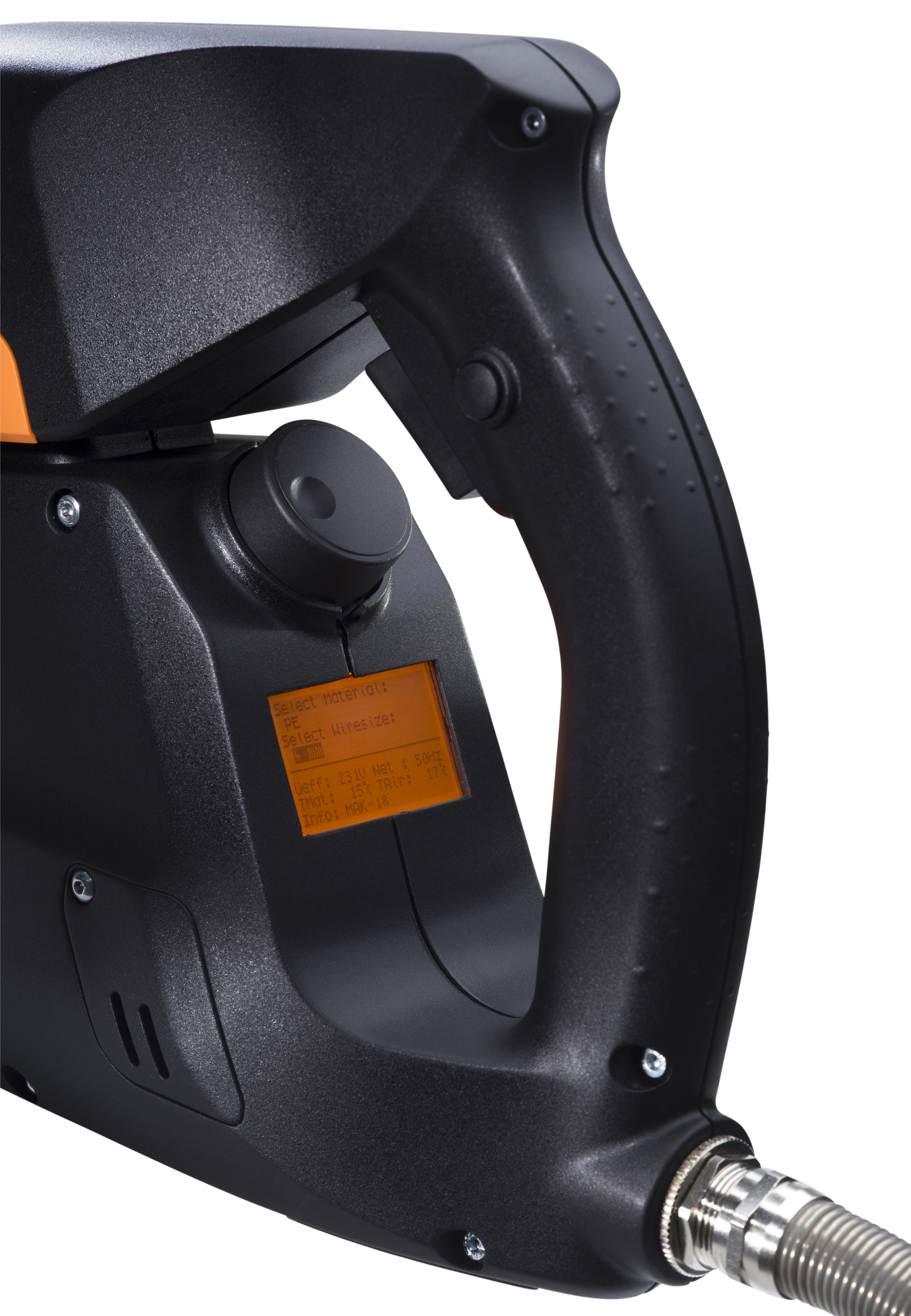

Controller melting chamber: Temperature contoller
with simultaneous set-point and actual value display
Controller air temperature: Temperature contoller
with simultaneous set-point and actual value display
Cold start-protection: Minimum temperature safety
level for melting chamber and preheating air
Stand and hot-air hood included
Including Welding shoes:
G07692 Unshaped Welding shoe 42.01xxx-40-30-M
G07684 Welding shoe 42.0107K-40-30-M
G07680 Welding shoe 42.0125F-40-30-M

Title	Type	Size	Download
Munsch-MAX-extruder-advantages.pdf	PDF	1.49MB	Download
