Butt welding machine, Hürner, HWT 250 MI, 250mm SN:_
HÜRNER Schweisstechnik GmbH514.116
Ask For delivery time
+45 9835 1930 --or-- SEND MAIL

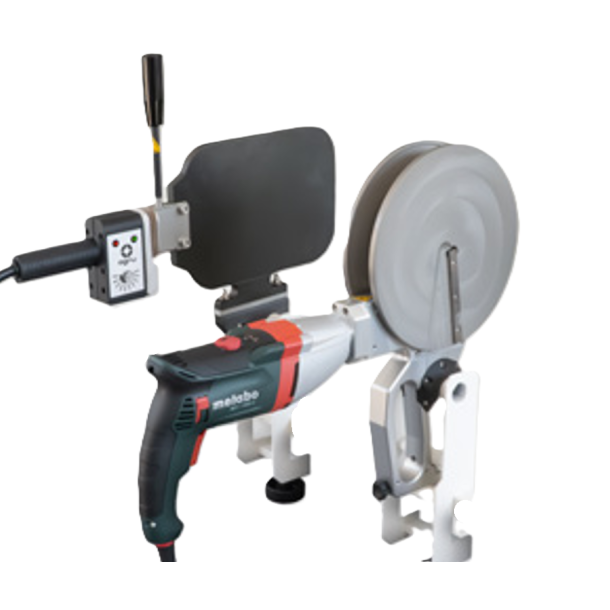

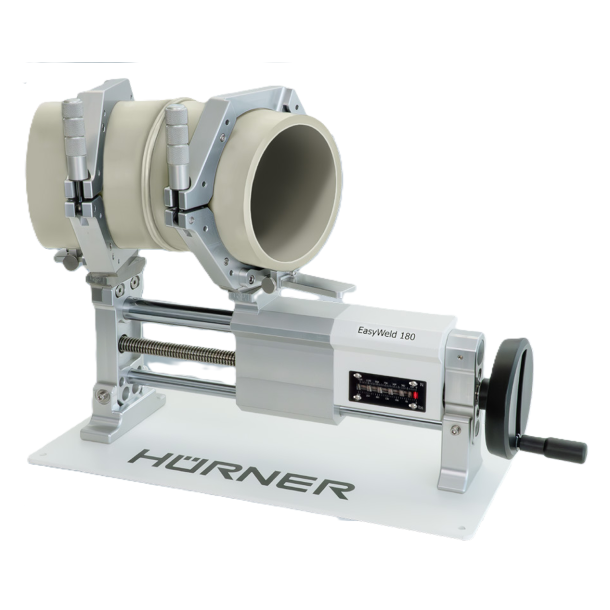

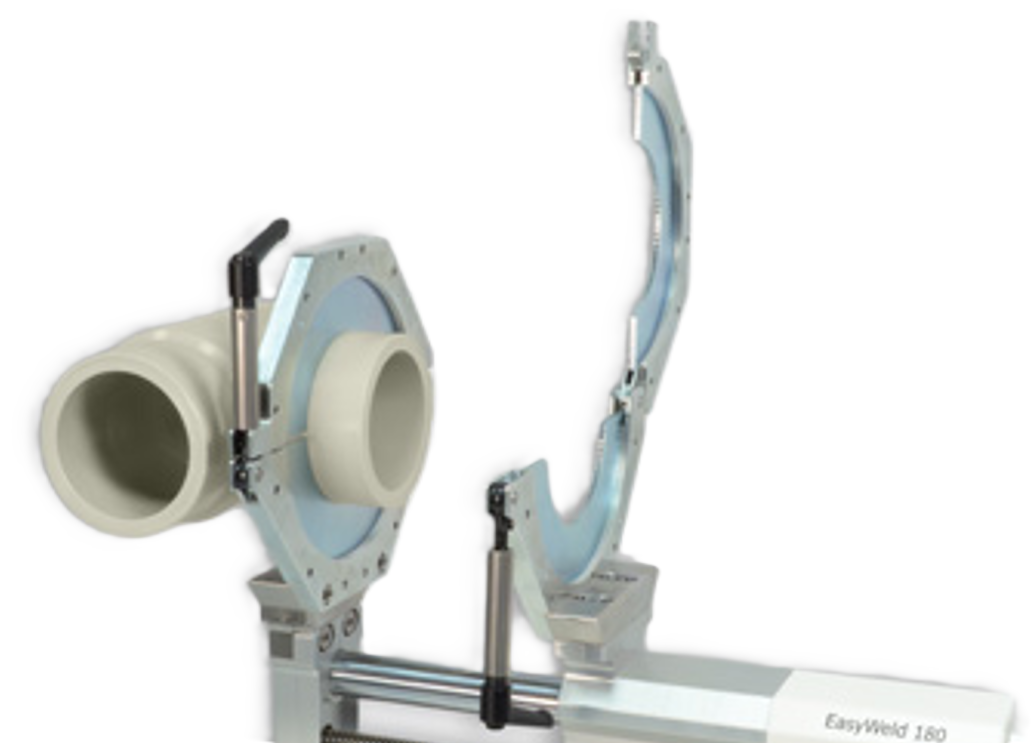

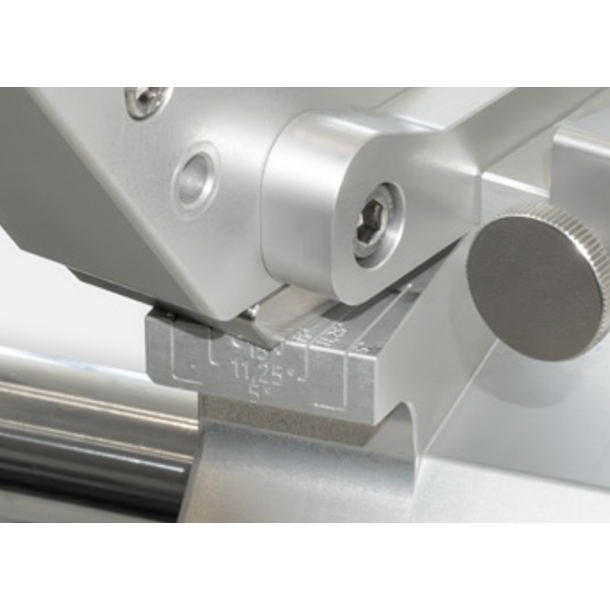

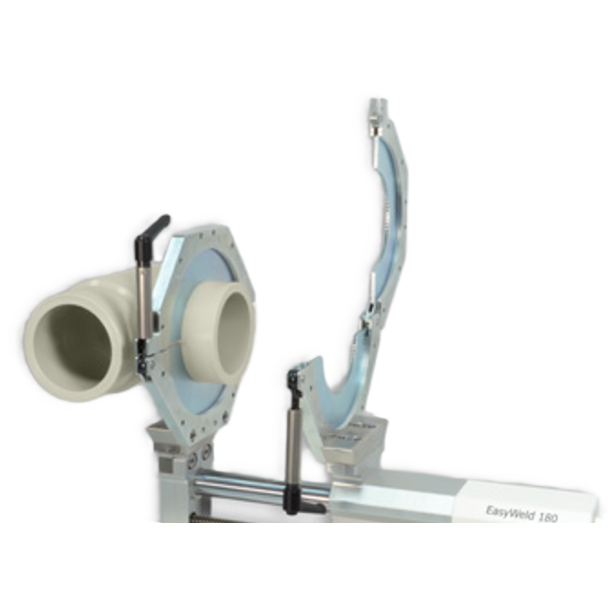

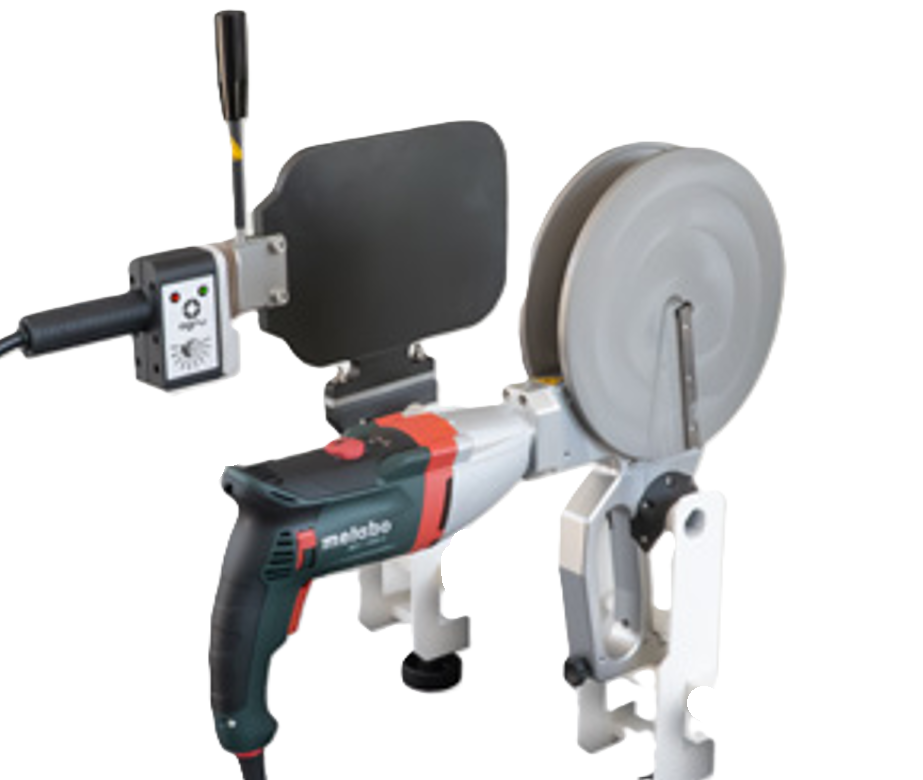

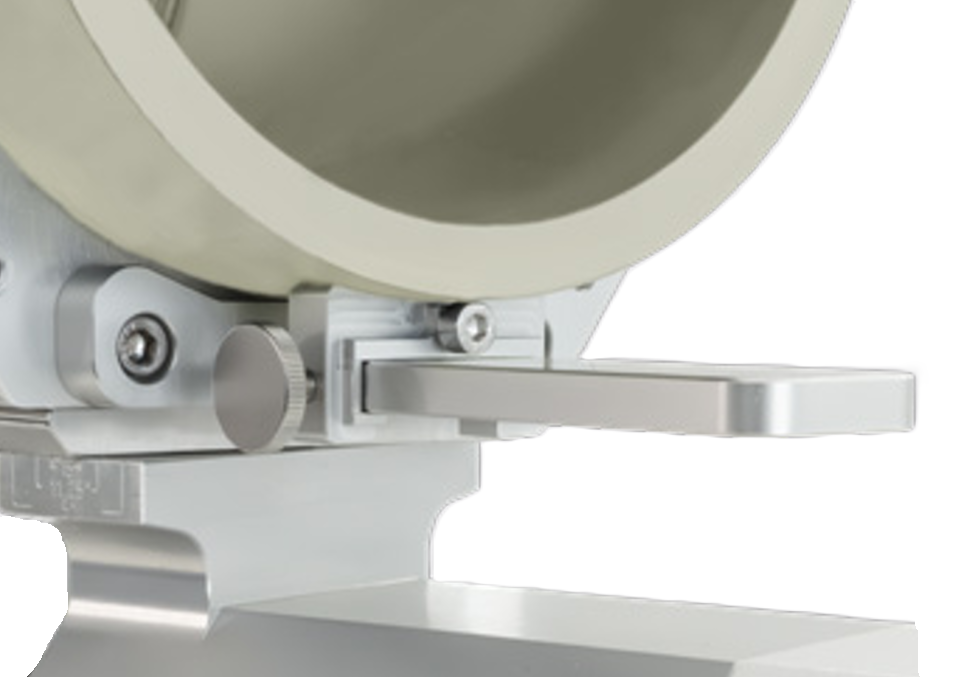

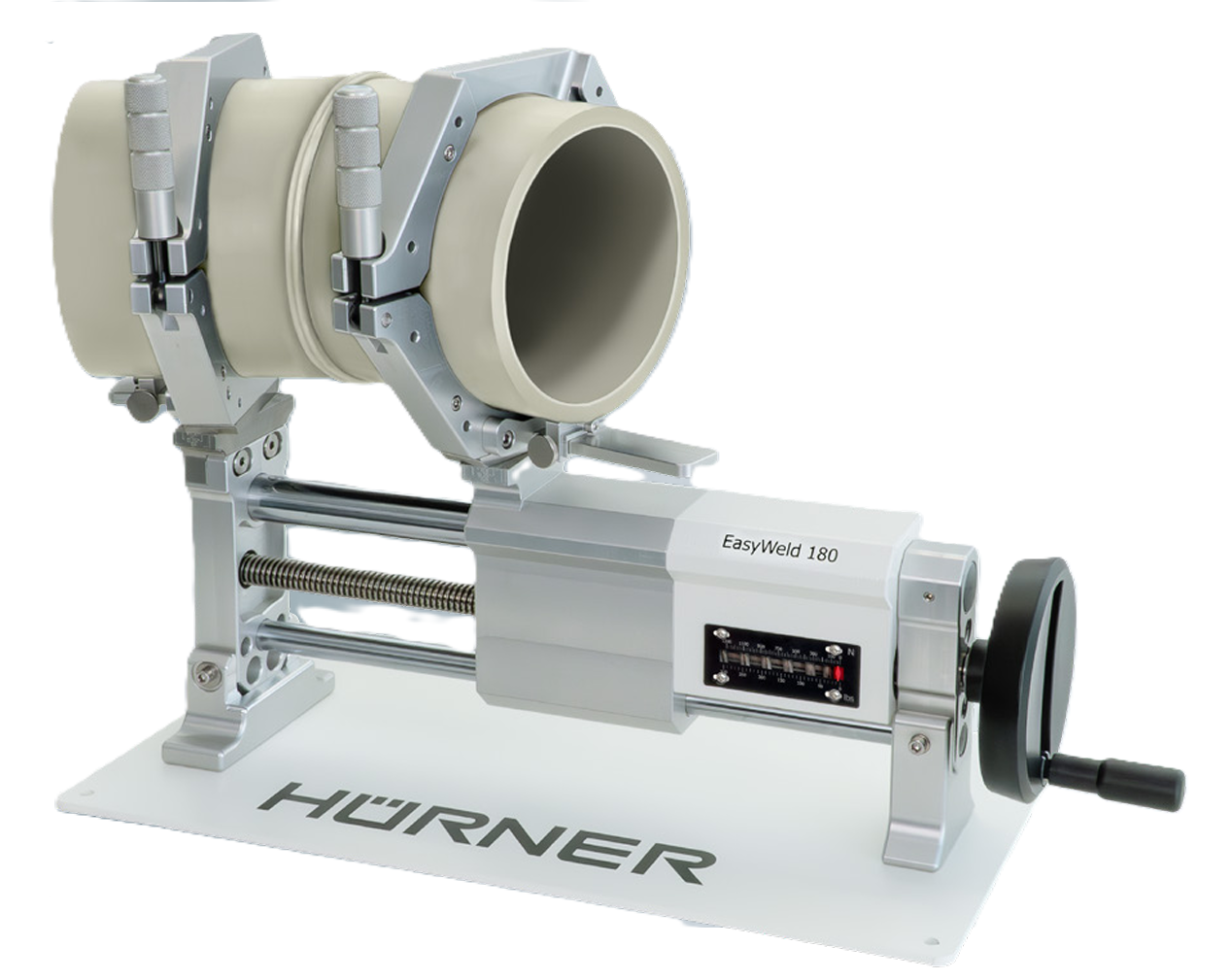

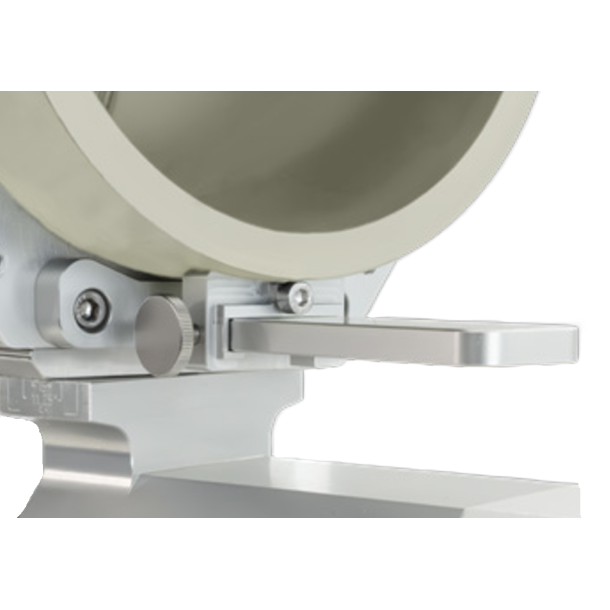

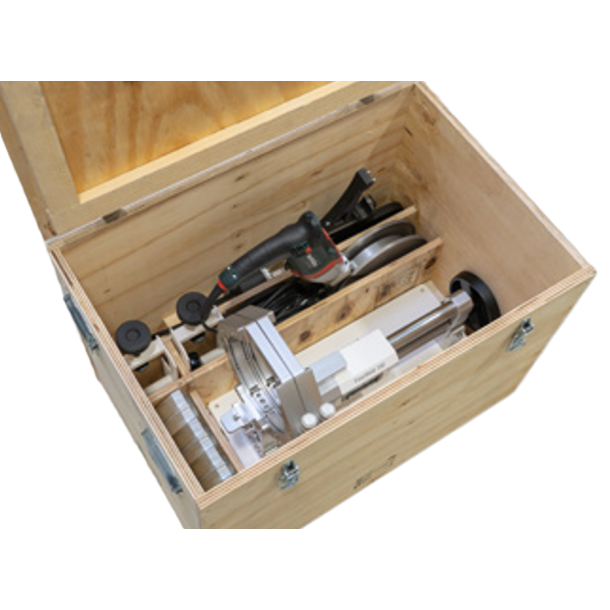

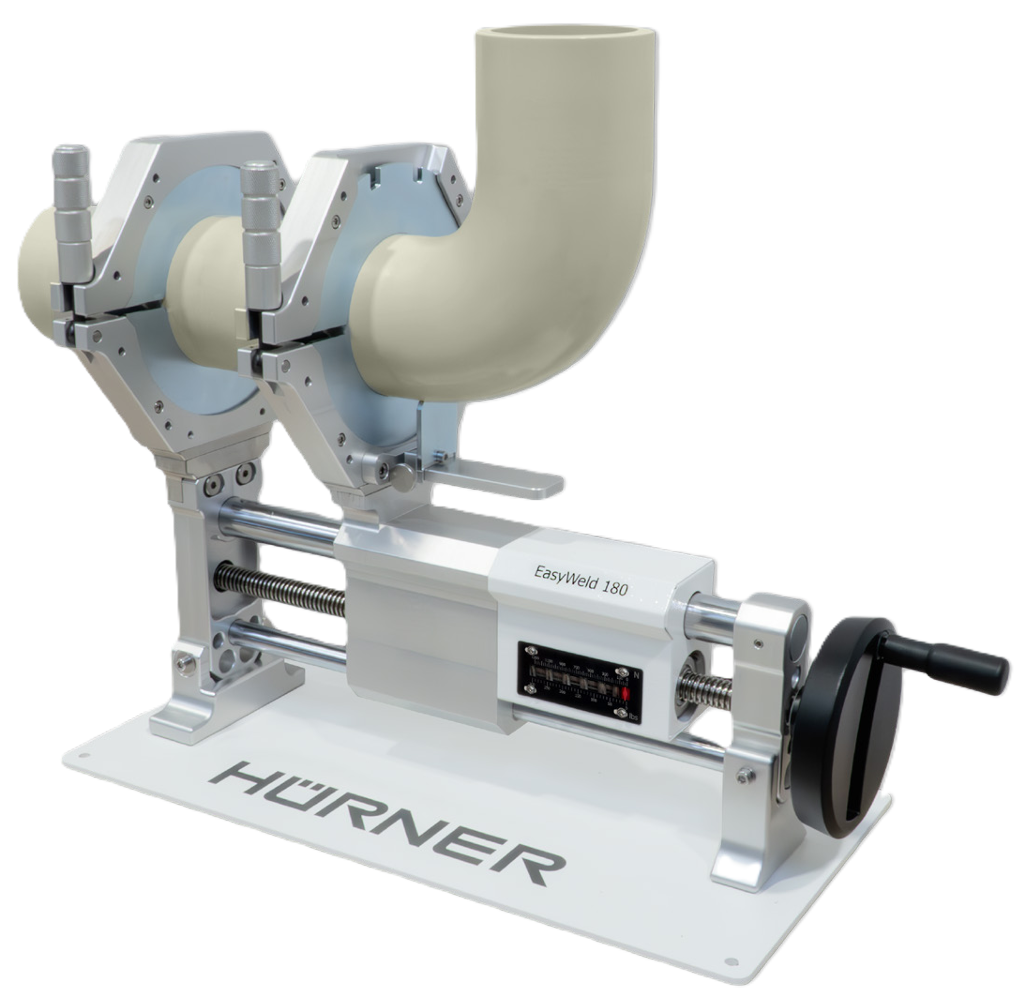

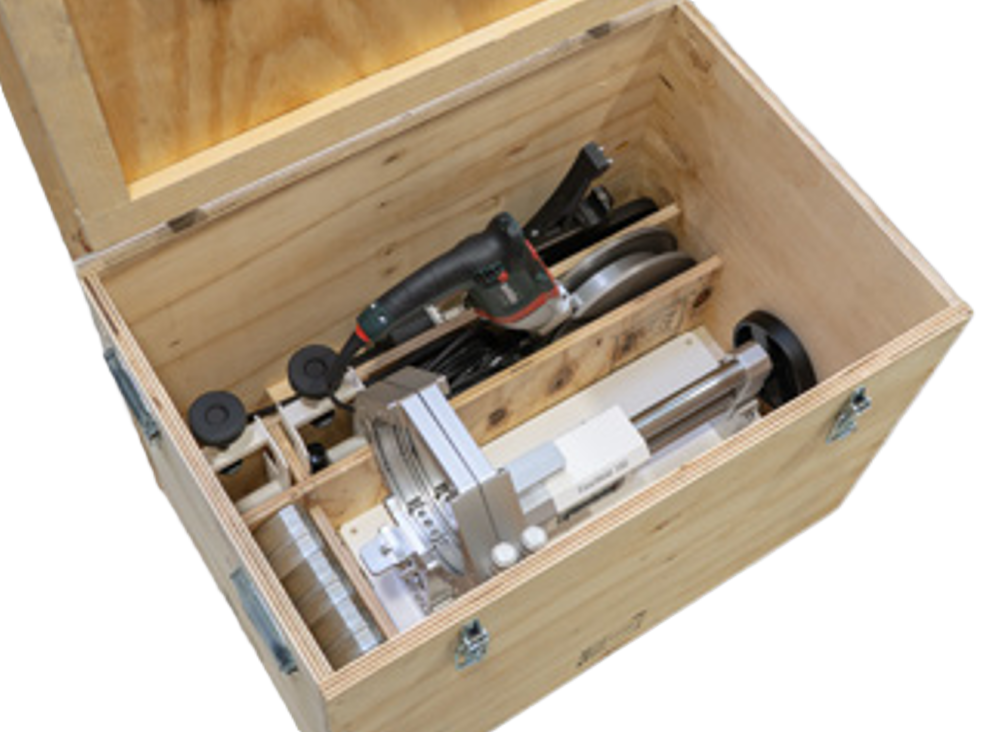

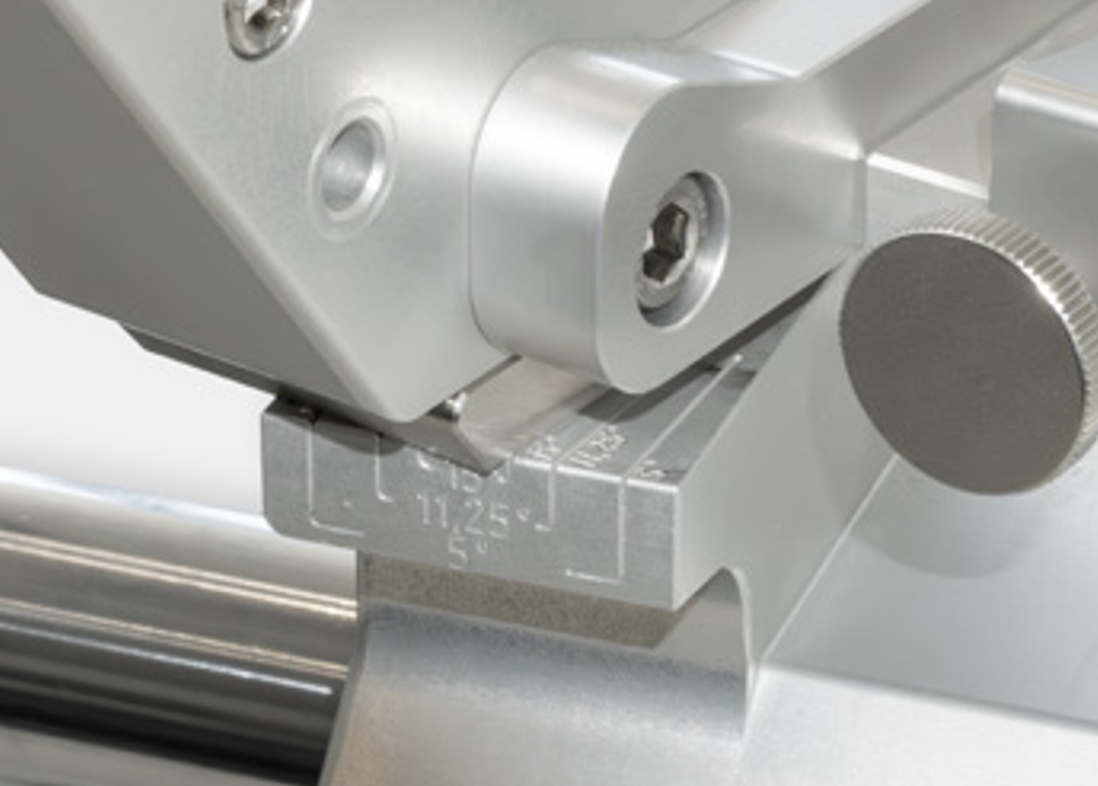

Mobile welding system HÜRNER EasyWeld 180 (230 V), incl. horizontal adjustability and power facing tool for easy and mobile butt-welding on the worksite and in the workshop of pipes and fittings made of PE, PP, and PVDF, for dimension ratios from O.D. 50 - 180 mm. EasyWeld 180 system components: Machine chassis with master clamps O.D. 50 - 180 mm set on a powder-coated base panel. The master clamps can be rotated by 15 deg. each on both sides (30 deg. overall angle). The master clamps feature the possibility of horizontal adjustments (of advantage when welding segmented bends). Electrical facing tool with two-edge usable blade Electronically controlled, PTFE-coated heating element Tabletop support for heating element and facing tool Wooden transport box Reducer inserts O.D. 50, 63, 75, 90, 110, 125, 140, 160 mm, 8 units for each dimension Pipe rest O.D. 50, 63, 75, 90, 110, 125, 140, 160 mm, 2 units for each dimension Technical specifications : Machine incl. base panel: 23 kg Basic machine chassis w/o base panel: 17 kg Power facing tool: 8.8 kg Heating element: 4.8 kg Machine overall, with transport case, reducers, and accessories: 75 kg Machine dimensions (W x H x D): 680 x 430 x 270 mm Transport box dimensions (W x H x D): 830 x 520 x 510 mm Standards, approvals, quality, ingress protection: CE, DVS, WEEE Reg. No. DE74849106 (heating element), ISO 9001:2015, RoHS-compliant (heating element) Manufacturer warranty: 12 months Accessories, supplied: User’s manual with warranty certificate Hexagonal head socket wrench, 3 x Optional: Narrow master clamps LH/RH Welding neck support Rod cutting guard
| Title | Type | Size | Download |
|---|---|---|---|
| EasyWeld_180_en_web.pdf | 1.05MB | Download |
Butt welding machine, Hürner HWT 160M, 160mm, Spring machine incl. Reductions
HÜRNER Schweisstechnik GmbH514.005
Ready for shipment!
€ 2.346,67
EasyWeld 110 T with Horizontal and Vertical Adjustability and Power Facing Tool
HÜRNER Schweisstechnik GmbH514.059
Ready for shipment!
+45 9835 1930 --or-- SEND MAIL
EasyWeld 110 with Horizontal Adjustability and Power Facing Tool
HÜRNER Schweisstechnik GmbH514.047
Ready for shipment!
+45 9835 1930 --or-- SEND MAIL
