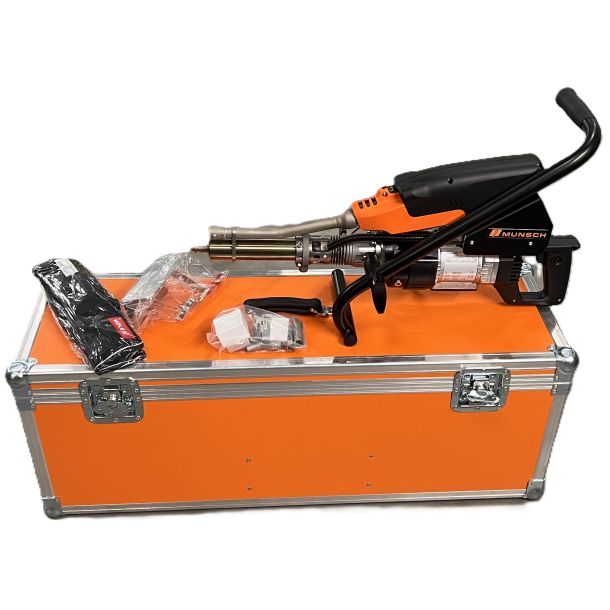

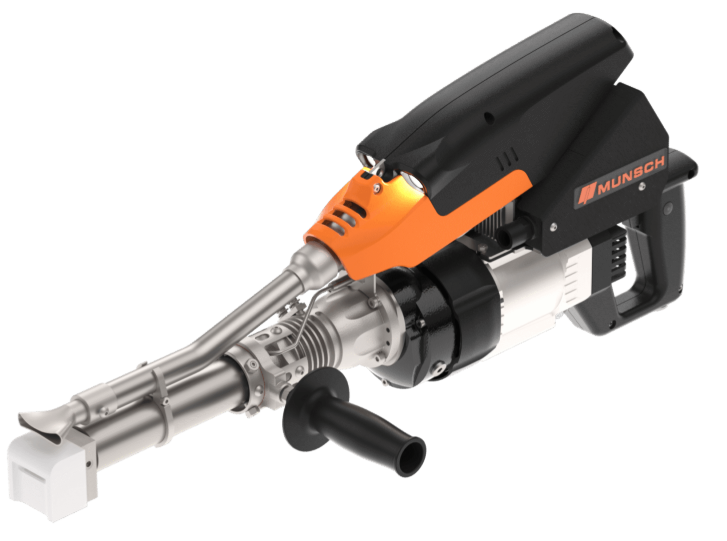

MUNSCH Portable Extruder Welding Gun MAX-48D (240V)

Welding rate: 4,8 kg/h - Ø 5 mm; 3,2 kg/h - Ø 4 mm Rod welding material: PP / PE / PVDF; preset Welding rod: Rod Ø 4 mm / 5 mm Rage of application: Wall thickness from 10 to 35 mm Weight: 8,7 kg Drive: 230 V speed controlled / brush-type Extruder heating: 800 W, 230 V Air heater: 2300 W, 230 V Controller melting chamber: Temperature controller with simultaneous set-point and actual value display Controller air temperature: Temperature controller with simultaneous set-point and actual value display Cold start-protection: Minimum temperature safety level for melting chamber and preheating air Air requirement: 300 l/min Preheating nozzle: 23mm; 35mm; 50mm inc. landfill handle, hot-air hood and tool-set Included Welding shoes: G07695 Unshaped shoe 43.01xxx-40-40-M G07679 Welding shoe 43.0140F-50-50-M Maximum performance for large-area welding work on geosynthetics. When performance, endurance and reliability are required for welding, the MAX-48 is the right choice. With an output of up to 4.8 kg/h (with 5 mm wire), this extruder can also handle extensive weld seams on geomembranes (e.g. HDPE / LLDPE films) in classic geosynthetics applications and sealing technology. Large-format plastic components can also be ideally produced with the plastic construction version. Despite its power, the MAX-48 remains compact and easy to operate. The digital temperature control for air and earth DVS-compliant ensures consistent welding quality. The timed heating control also allows the machine to be used with a normal house connection without compromising on performance. As is typical of the MAX series, the MAX-48 also offers convenient handling, energy-efficient operation, integrated high-performance LEDs, dust filters and a well thought-out operating menu all for smooth welding under tough construction site conditions. Up to 4.8 kg/h output (with 5 mm wire) ideal for geomembranes & civil engineering For wall thicknesses from 10-35 mm Powerful 2000 watt motor for maximum performance DVS-compliant control of air & mass separately Compatible with 230 V house connection Digital menu navigation with display & material presets High-performance LEDs optimum illumination even in poor light Energy-efficient working thanks to standby function & auto-off Integrated dust filter for long-lasting technology Part of the proven MAX family precise, robust, ready for use
