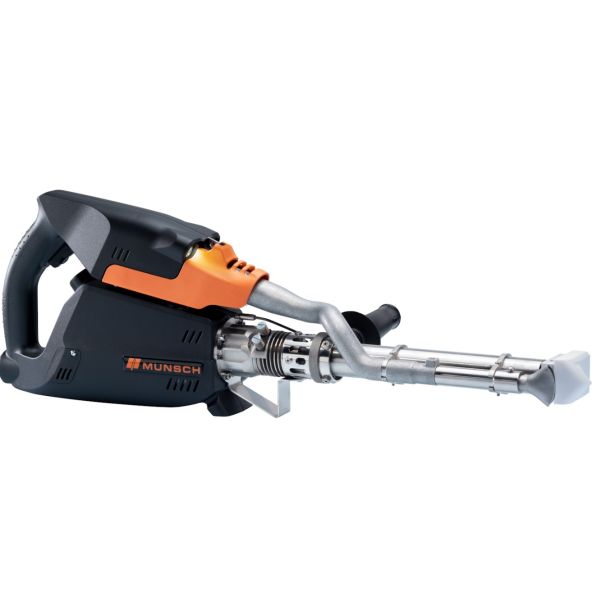

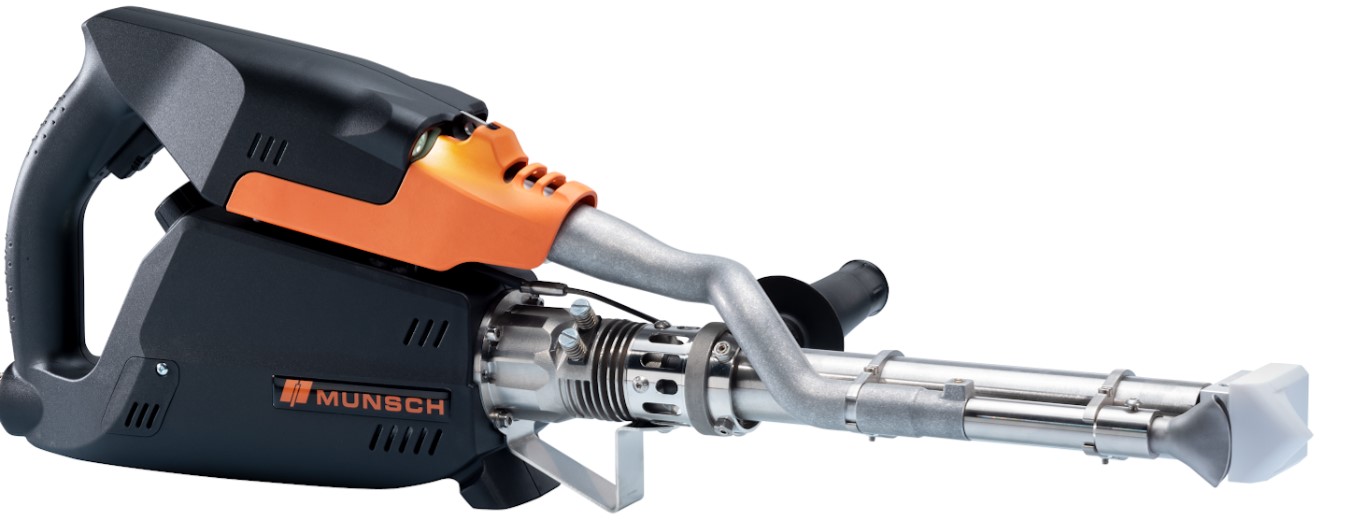

MUNSCH Portable Extruder Welding Gun MAX-65B

MUNSCH Portable Extruder Welding Gun MAX-65B

Model/Product no.: 531.188
Stock status: Ask For delivery time




Portable Extruder Welding Gun; MAX-65-B, 230 V
Welding rate: 6,5 kg/h - Ø 5mm; 4,0 kg/h - Ø 4mm
Rod welding material: PP / PE / PVDF; preset
Welding rod: Ø 4 / 5 mm
Range of application: Wall thickness from 12 to 40 mm
Weight: 8,8 kg
Drive: 230 V speed controlled - brushless
- An external powerbox is required for using the extruder-
Extruder heating: 800 W, 230 V
Air heater: 2300 W, 230 V
Controller melting chamber: Temperature controller with
simultaneous set-point and actual value display
Controller air temperature: Temperature controller with
simultaneous set-point and actual value display
Cold start-protection: Minimum temperature safety level for
melting chamber and preheating air
Air requirement: 300 l/min
Electric connection: 7,5 m special connection between
powerbox and extruder
Preheating nozzle: 35mm; 50mm; 65mm
Hot air hood and tool set included
Included Welding shoes:
G07695 Unshaped shoe 43.01xxx-40-40-M
G07677 Welding shoe 43.0121K-60-50-M
