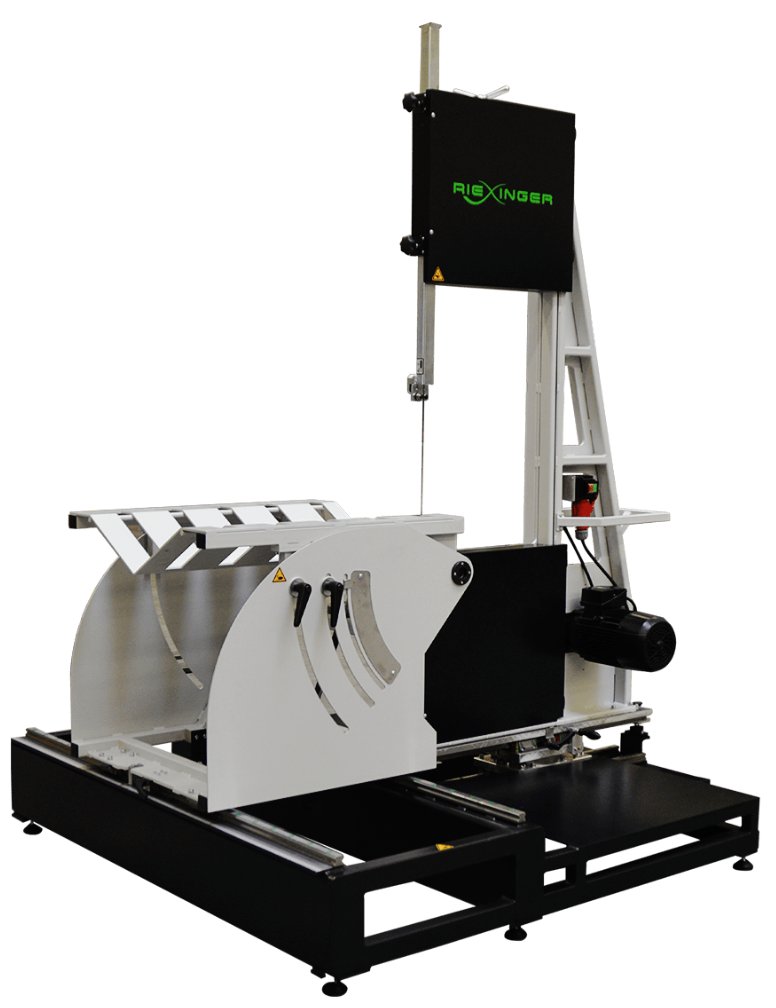

BSM 630 R-W Bandsaw – Flexible Like a Swiss Army Knife

The BSM 630 R-W offers nearly every option for manual processing of plastic pipes up to Ø 630 mm. It allows precise angle and radius cuts from 0° to 45°, supported by a scale and a high saw band speed for optimal cutting quality.

Key Features:

  • Angle and radius cuts from 0° to 45°
  • Precise adjustment options
  • High saw band speed for clean cuts
  • Precision guides for straight cuts

Technical Data:

  • Operation: Manual
  • Materials: PE, PP, PVC, GPR, CFK
  • Shapes: Round pipes and solid round material
  • Cutting Range: Ø 200–630 mm (at 0° and 45°)
  • Radius Cut: 100–800 mm
  • Dimensions (L×W×H): 2,222 × 1,753 × 2,682 mm
  • Weight: 750 kg
  • Saw Band Speed: 350 m/min
  • Saw Band Dimensions: 0.65 × 6 × 4,600 mm
  • Power Supply: 400V, 50 Hz, 3.5 kVA
  • Manual adjustments for saw feed, tension, angle, and material clamping
  • Material Support: V-table
  • Paint Finish: RAL 7035, 9005 (silk matte)

Watch in action:



Model/Product no.: 552.362
Stock status: Ask For delivery time



Title Type Size Download
Reixinger-BSM-630-RW-data.pdf PDF 147.97KB Download
