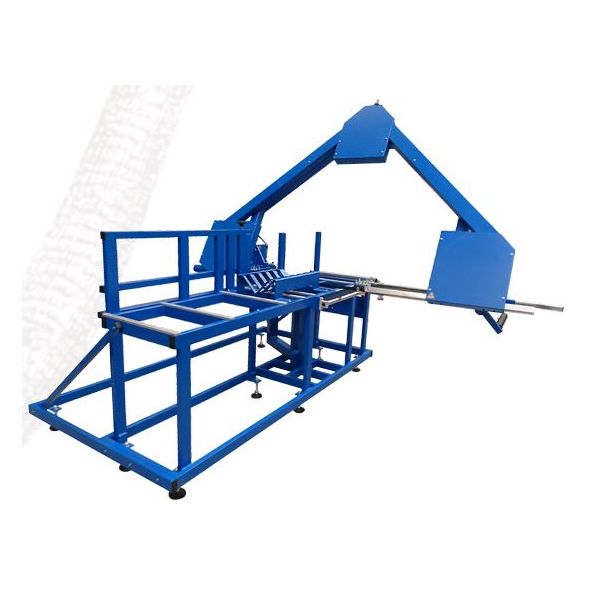

BSM 630 manuel bandsaw for Ø200-630 mm. (angular cut 0-45° one side).

BSM 630 manuel bandsaw for Ø200-630 mm. (angular cut 0-45° one side).

Band saw BSM 630

For sawing plastic pipes Ø 200 – 630 mm

0 – 45º cut to one side, with precise guidance.

Length scale with centimeter to the right.

On / Off  contact in handle

Motor with overload protection 400 V. 2.5 kW. Weight 400 kg. Length 2000 mm. Width 2200 mm. Transport height 2100 mm. Height max. 2400 mm.

The entire saw rests on a powerful machine frame with adjustable legs, which provides a very easy setup. Item no. 552.355

Technical Data

Dimensions and weight

  MEASUREMENTS
LENGTH: 2.500 mm
WIDTH: 2.500 mm
HEIGHT: 2.350 mm
WEIGHT: 450 kg
SAWING RANGE: 200 – 630 mm

Electrical connection

OPERATING VOLTAGE: 400 V
FREQUENCY: 50/60 Hz
FUSE: 16 A
INSTALLED LOAD: 2,5 kW

Model/Product no.: 552.355
Stock status: Ask For delivery time

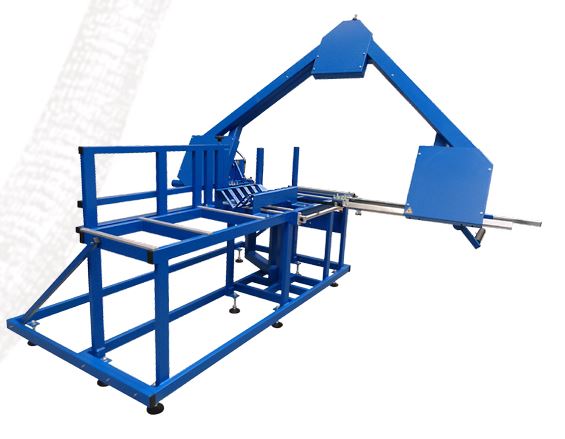

Electric band saw for plastic pipes – BSM 630
The BSM 630 is the cost-effective, robust solution for manual sawing of plastic pipes with a diameter of 200 mm to 630 mm.

Thanks to the continuously tiltable saw arm, angle cuts up to 45° are possible. Both the machine stand and the saw frame are made of a torsion-resistant steel construction. The ball-bearing mounted saw blade deflection ensures a smooth and precise running of the saw blade and the spring-supported blade tensioning device allows an easy saw blade change. Safety is ensured by a two-hand ON-OFF switch with motor protection and brake electronics.

All benefits at a glance
Machine stand and saw frame in robust, torsion-resistant steel construction
Saw blade deflection with ball bearings
Band tensioning device with spring support
Angle cuts 0°- 45° by tiltable saw arm to one side
Two-hand ON-OFF switch with motor protection and brake electronics
